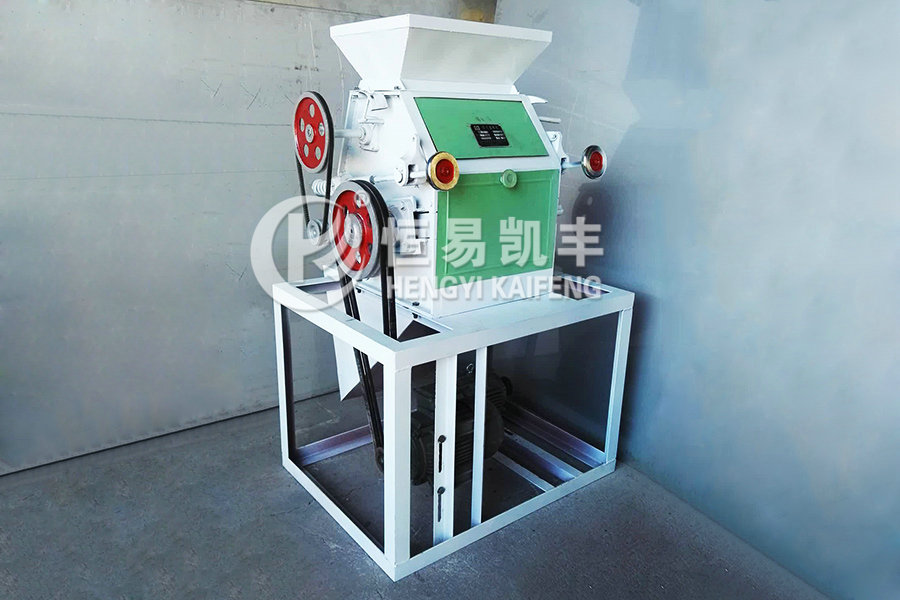

Compound counter roll crusher
Fmfq (s) compound mill is widely used in large and medium-sized activated carbon production enterprises with high output equipment, and can also be used in corn, sorghum, pepper, brewing, feed industry material grinding.
characteristic:
1. Compact structure, novel design, flexible and reliable operation, high production efficiency.
2. Cast iron base, manganese steel frame structure, smooth operation.
3. Synchronous belt drive, eccentric tension mode, reasonable structure, long service life.
4. Feeding system motor drive independently, flexible control, to ensure that the first feed after grinding
5. The roller bearing is disassembled hydraulically without hammering to ensure the matching accuracy of roller and bearing.
| 參數(shù) parameter 型號 Model | FMFQ（s）50*2 | FMFQ（s）60*2 | FMFQ（s）80*2 | FMFQ（s）100*2 |
| 磨輥規(guī)格（mm） Grinding roller spec | Φ250-500 | Φ250-600 | Φ250-800 | Φ250-1000 |
| 磨輥使用范圍（mm） Scope of use | Φ250 ~ 500 | |||
| 快輥轉(zhuǎn)速（mm） Quick roll Speed | 550 | |||
| 磨輥安裝方式 Installation mode | 水平 Horizontal | |||
| 工作壓力（mpa） Pressure | 0.4-0.6 | |||
| 磨粉機耗氣量（m3/h） Air consumption | 0.06-0.08 | |||
| 喂料形式 Feeding method | 雙輥 Double rollers | |||
| 快、慢輥速比 Roller speed ratio | 2：5：1 | 2：1 | 1：5：1 | 1：25：1 |
| 電機功率（Kw） Motor power | 5.5-15 | 5.5-18.5 | 7.5-22 | 11-22 |
| 重量（Kg） weight | 2400 | 2700 | 2900 | 3100 |
| 外形尺寸（mm） Outline size | 1400*1410*1850 | 1500*1410*1850 | 1700*1410*1850 | 1900*1410*1850 |
